Quick Details

  • Type: Wrapping Machine
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Packaging Type: Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Foil, Pouch, Stand-up Pouch
  • Packaging Material: Glass, Metal, Paper, Plastic, Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V/50-60Hz
  • Power: 5.4Kw
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FY
  • Model Number: 4020L
  • Dimension(L*W*H): 1800*700*150mm
  • Weight: 120KG
  • Certification: CE,SGS,ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • heater: Quartz heater tube and stainless-steel heater optional
  • control system: electric PCB
  • tunnel size: can be custom made
  • machine weight: adjustable
  • conveyor: Teflon mesh,stainless-steel mesh ,roller optional
  • control panel instruction: English and Chinese
  • Shrink ffilm used: POF,PVC,PE ,PET
  • features: can be used respectively and connected with production line
  • conveyor speed: 0-12 m/min adjustable
  • certificate: CE,SGS,ISO9001

Packaging & Delivery

Packaging Details carton packaging or wooden case packing .packing size 1100*600*1450mm(high model ,one 20 feet container could loading 40 pcs
Delivery Time within 7 days after receiving down payment

Automatic L bar sealer shrinking tunnel




Product Description

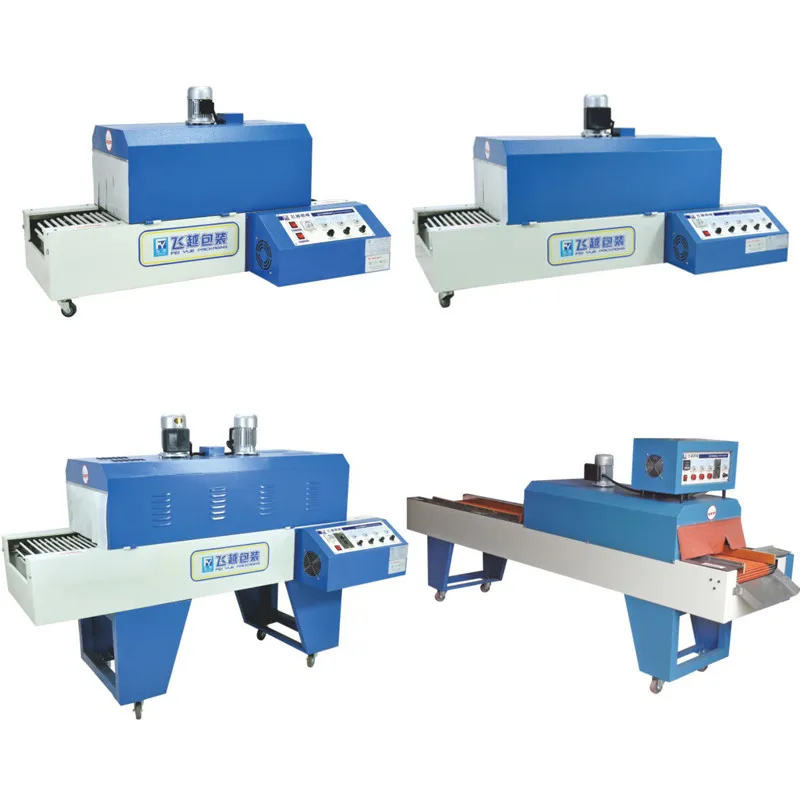

P Products Picture







1. Basic machine features

This Shrink Wrap System automatically seals and shrinks your products thereby maximizing the speed at which you complete your packaging jobs. The BS-560C can easily be operated by a single operator to wrap a variety of both food and nonfood products.

       >Used to shrink pack single or multiple medicine, foodstuff, cosmetic, chemical, auto parts and so on.

Adjustable height fits a variety of products.

Transparent lid for high work area visibility.

  It can finish all actions automatically such as covering with film, sealing, shrinking and so on.

        The bag length is controlled by photoelectric stepping motor; shrink speed is controlled by steeples; HMI and PLC control the whole machine.

 All appliances are famous brands and make sure the machine run stably.

The malfunction can be shown automatically when machine running.

       It can be used separately or in line with automatic cartooning machine and case filling machine.

 2. Main Technical Parameters

Packing material

PO,POF triple extrusion environmental protection shrink film

Packing material size

0.012~0.05*200~550mm (thickness*width)

Packing material roll diameter

Max. 250 mm

Power supply

380V/50HZ or 220V/60HZ

Power:

1.5 KW

Air pressure

0.5mpa

capacity

20~30PCS/min

Max. Packing size(L*W*H)

450*320*125mm,W+H<400mm

Machine size:

L*W*H: 1700*800*1450mm.

Machine Main material

 stainless steel

Machine weight

300kgs



Detailed Picture:

Control part:

Width adjusting:

Cutter

Adjusting height:

Eletric part:









Shrinking samples
